The short version
- Pick the sonar type before you pick the brand. Traditional CHIRP shows fish arches, down imaging shows structure, side imaging finds structure, and live forward-facing sonar shows fish move in real time.
- Higher frequencies show finer detail in shallower water. Lower frequencies reach deeper. Most kayak and small-boat water is well within high-frequency range.
- On a kayak, transducer mounting decides everything. Scupper mounts and arms are the most common. In-hull shoot-through only works on suitable hulls.
- Size your battery from the unit's current draw and add a margin. Cold weather cuts battery capacity.
- GPS is a safety tool as well as a fishing tool. Mark your launch before you leave it.
A fish finder won't catch fish for you, but it changes how you spend your time on the water. Instead of casting at a featureless lake, you're fishing the drop-off, the brush pile and the school of baitfish you just watched slide under the boat. On a kayak or a small boat, the challenge is fitting real sonar into a small space with limited power and no convenient transom. This guide covers how to choose the right unit, mount it properly and power it reliably.
The four sonar views, and what each one is good for
Modern units bundle several sonar types, and the marketing names vary by brand. Under the names, there are four core views:
| Sonar view | What it shows | Best for | Kayak notes |
|---|---|---|---|
| 2D / CHIRP (traditional) | A cone straight down, displayed as a scrolling history. Fish appear as arches. | Depth, bottom hardness, fish and bait under the boat | Included on nearly every unit; works with small transducers |
| Down imaging | A thin, high-frequency slice below the boat with near-photo detail | Identifying structure: brush, rock, weed edges, timber | Very useful in shallow lakes; needs a compatible transducer |
| Side imaging | Thin beams to each side, building a picture of the bottom as you move | Scanning water fast to find structure and schools away from the boat | Needs the transducer to "see" both sides clearly. Hull shape and mounting matter. |
| Forward-facing / live sonar | Real-time video-like view of fish and lures in front of or around the boat | Watching fish react to a lure; targeting suspended fish | Highest cost and power draw; usually needs a separate transducer and a pole mount |
Most kayak and small-boat anglers get the most value from a CHIRP plus down imaging combo with built-in GPS. Side imaging earns its keep on bigger lakes, rivers and coastal water where you need to search a lot of bottom. Live sonar is a serious upgrade for anglers who already know their water.
Frequencies, cones and depth: the trade-offs
Sonar frequency works like a lens. Lower frequencies travel farther through water and reach deeper. Higher frequencies give sharper, more detailed returns but lose range. Humminbird's own help documentation gives approximate ranges for its settings:
| Frequency (Humminbird) | Strength | Approximate useful range |
|---|---|---|
| 50 kHz | Deep water | Beyond 1,500 ft |
| 83 kHz | Deep water, wide coverage | Beyond about 800 ft |
| 200 kHz | More detail, shallower water | Under about 800 ft |
| 455 kHz (imaging) | Coverage and range for imaging | About 350–400 ft down; up to about 800 ft side to side |
| 800 kHz (imaging) | Sharp detail in shallow water | About 125 ft down; about 250 ft side imaging |
The takeaway for kayak and small-boat anglers: most of the water you'll fish is shallow enough that high-frequency and imaging settings work well. You don't need deep-sea sonar to fish a 25-foot reservoir.
Cone angle and what you actually "see"
Traditional sonar sends out a cone. The wider the cone, the larger the circle it covers on the bottom, and the circle grows with depth. As a rough geometry check, a 20-degree cone covers a circle about 7 feet across in 20 feet of water, and about 3.5 feet across in 10 feet. In shallow water, then, your sonar sees a small patch, which is one reason side imaging is so useful there. Humminbird's CHIRP settings reflect the same trade-off: "narrow" gives more bottom detail and target separation, and "wide" maximizes coverage and shows clearer fish arches.
Fish arches appear because a fish enters the edge of the cone, gets closer as it passes under the center, then moves away again. A fish holding still under a stationary kayak shows as a flat line, not an arch. Don't assume a straight line is debris.

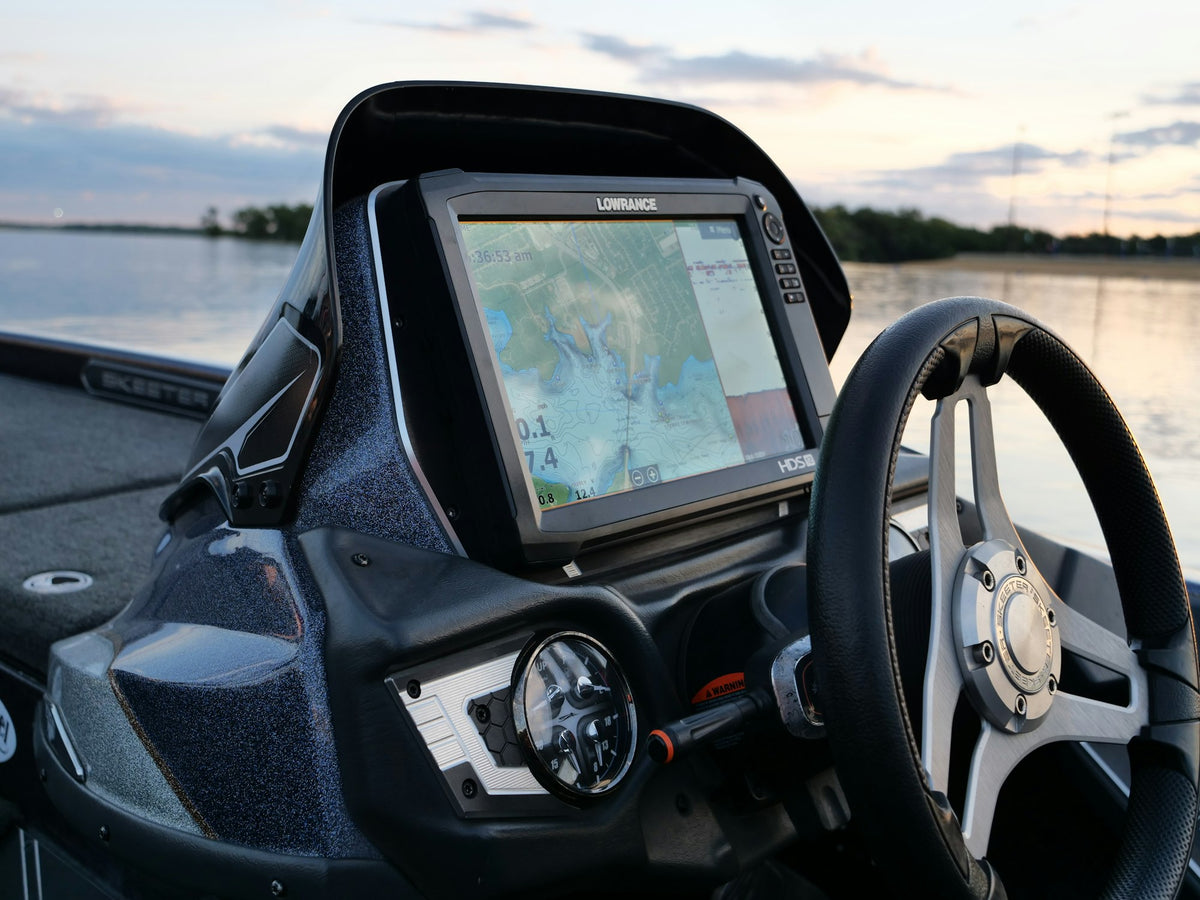

Choosing a unit for a kayak or small boat
- Screen size: 4–5 inch screens fit nearly any kayak and run on small batteries. 7-inch screens are much easier to read with split-screen sonar and maps, and fit most fishing kayaks with a console or track. 9 inches and up generally suit small boats more than kayaks.
- Built-in GPS: Get it. Waypoints let you return to a brush pile, and tracks get you back to the launch. Hobie makes the point that GPS matters most on open and ocean water, where fog can hide the shoreline.
- Mapping: Many units now let you build your own depth contours as you drive or paddle. That's powerful on small lakes with no published charts.
- Transducer compatibility: Check what transducer comes in the box and whether it fits your kayak's mounting system. Some fishing kayaks have a dedicated transducer scupper sized for specific brands.
- Waterproofing and buttons: On a kayak the unit gets splashed constantly. Physical buttons are easier with wet or gloved hands than a touchscreen.
Shop the gear: Fish finders and kayak fishing electronics · Waterproof tech and power
Mounting the transducer on a kayak
A good head unit with a badly mounted transducer gives you a bad picture. The transducer needs to sit in clean, bubble-free water, aligned parallel to the waterline, with a clear view down (and to each side, for side imaging).
| Mount type | How it works | Pros | Cons |
|---|---|---|---|
| Scupper mount | Transducer sits in or under a scupper hole on a bracket | No drilling on many fishing kayaks; good water contact | Exposed to grounding; some scuppers are sized for specific brands |
| Transducer arm (side or transom) | Arm on a track or gunwale lowers the transducer into the water | Easy to remove; flips up for launching and shallows | Can catch weeds; adds drag on one side |
| In-hull (shoot-through) | Transducer bonded inside the hull, shooting through it | Fully protected; nothing in the water | Only on suitable hulls and transducers; some signal loss; imaging may suffer |
| Pedal-drive or rudder-well bracket | Manufacturer-specific bracket | Purpose-built fit | Model-specific |
Be careful with shoot-through installs. Garmin's transducer placement guide limits in-hull mounting to solid fiberglass with no core or hollow space beneath the transducer. It doesn't recommend metal, wood or cored hulls, and it warns that some in-hull transducers aren't suitable for every hull. Most recreational kayaks are rotomolded plastic, so check your transducer's and your kayak's documentation before you glue anything in. Scupper or arm mounts are the safer default.
On a small boat
For jon boats, skiffs and small aluminum boats, a transom mount is standard. Garmin's guide calls for mounting in clean water, away from prop wash, at least 15 inches from the propeller, and parallel to the waterline. Avoid placing it behind strakes, rivets or fittings that create turbulence, and route the transducer cable away from engine and power cables to reduce interference.
Use nuts and bolts rather than screws wherever you can reach the back of the mounting surface, as Hobie recommends. Coil and zip-tie excess cable so stowed gear can't cut or pinch it. A crushed transducer cable is one of the most common reasons a kayak fish finder "dies."
Power: picking and protecting the battery
Most compact fish finders run on 12-volt power. Hobie's kayak electronics guide compares the two common choices:
- Sealed lead-acid (SLA): cheap and widely available, but heavy for its capacity.
- Lithium iron phosphate (LiFePO4): about half the weight and more expensive, but able to run larger screens. It's the better choice for larger screens and long days.
To size a battery, find the maximum current draw (in amps) in your unit's specifications. Divide the battery's amp-hour (Ah) rating by that draw for a rough runtime, then build in a healthy margin. Imaging, live sonar and bright screens all push draw up. For example, a unit drawing 1 amp on a 10 Ah battery gives a theoretical 10 hours, but plan on noticeably less in practice. Garmin notes that cold temperatures reduce how long a battery holds its charge, which matters for spring and late-fall trips.
- Put an inline fuse on the positive lead, sized to the unit's documentation.
- Keep the battery in a waterproof box or a dry hatch, secured low and near the center of the kayak.
- Charge with a charger designed for your battery chemistry, never a mismatched one.
- Recharge after every trip, and don't store batteries fully drained over winter. Our winter storage guide covers off-season care.
Setting it up and reading the screen
- Start on auto. Let the unit pick sensitivity and range for your first few trips, and learn what the bottom looks like.
- Learn bottom hardness. A thick, bright bottom line usually means hard bottom like rock or gravel. A thin, dim one suggests mud or silt.
- Split the screen. Run CHIRP beside down imaging. When you see arches on one and a brush pile on the other, you know what you're looking at.
- Mark everything. Drop waypoints on structure, fish, hazards and, first of all, your launch.
- Adjust slowly. Raise sensitivity a step at a time until you see bait and clutter, then back off slightly.
Rigging the rest of the boat? See our kayak fishing setup guide for rod holders, anchor trolleys and layout. Keep a phone and charger in a sealed case as a navigation backup, too. Our waterproof ratings guide explains what IPX7 and IPX8 really mean.
FAQ
Do I need side imaging on a kayak?
It's not essential. CHIRP plus down imaging with GPS covers most small-water fishing. Side imaging is most valuable for searching big areas of bottom on larger lakes, rivers and coastal flats, and it needs a mount that gives the transducer a clear view to both sides.
Can I shoot the transducer through my plastic kayak's hull?
Sometimes, but check first. Garmin's placement guide limits in-hull mounts to solid fiberglass and warns that some in-hull transducers don't suit every hull. Read both your kayak's and your transducer's documentation. Scupper and arm mounts are the more reliable default.
What size battery do I need?
Divide the battery's amp-hour rating by your unit's maximum current draw for a rough runtime, then add a generous margin, especially in cold weather or with imaging and live sonar running.
Is a portable fish finder worth it for a rental or a friend's boat?
Yes. Portable kits with a suction-cup or clamp transducer and a self-contained battery give you real sonar on any small boat with no permanent install.
